Heavy Duty WRH

Heavy Duty Class IV Robust Design
Smooth operation even in toughest of application

Manufactured in ISO 9001:2000 Certified Company
Assured quality and Interchangeability of parts

Truly Modular Construction
Easily Accessible separate brake ,motor , drum gear box and panel unit

Seamless Pipe Accurately Machined rope drum
Long life

Unique and Sturdy rope guide arrangement
Prevents rope slackening and easy change rope

Precision Machine Cut Case-Hardened Alloy Steal gears
Noiseless Operation Longlife

Fail Safe Disk Brake
Trouble free operation and ease of adjustment

Built in Control Panel with Std. Electricals
Ready to Use

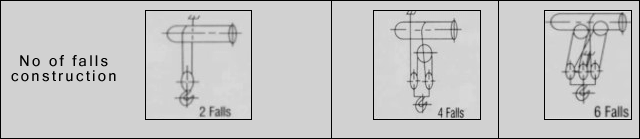

Type	WHR I			WHR II				WHR III			WHR I			WHR II				WHR III			WHR III
Model	NP 101			NP 201				P 301			NP 102			NP 202				P 302			P 303
Class	IV			IV		II		IV			IV			IV		II		IV			IV		II
S.W.L.. (Tonne)	1.0			2.0		2.5		3.0			2.0			4.0		5.0		6.0			7.5		10.0
Lift (Mtrs.)	6	12	20	6.6	11.4		19.2	7	12	20	3	6	10	3.3	5.7		9.6	3.5	6	10	4	6
Approx. Wt. (Kg.)	264	286	322	386	414		459	533	546	568	296	318	354	478	497		563	638	818	828	900	1000

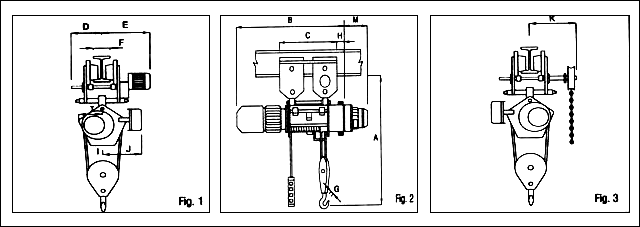

Dim B	1075	1285	1555	1170	1340		1610	1255	1425	1695	1075	1285	1555	1170	1340		1610	1255	1425	1695	1425	1695
Dim C	552	752	1022	588	758		1028	635	805	1075	552	752	1022	635	805		1075	635	805	1075	1050	1295
Hoisting Speed m/min	9			8				8			4.5			4				4			2.66
Hoisting Motor H.P (K.W)	3 (2.2)			5 (3.7)				7.5 (5.5)			3 (2.2)			5 (3.7)				7.5 (5.5)			7.5 (5.5)
Travelling Speed m/min^	17			17				17			17			17				17			17
Travelling Motor H.P (k.W)	0.25(0.18)			0.25(0.18)				0.5(0.37)			0.25(0.18)			0.5(0.37)				0.75(0.55)			0.75 (0.55) (2 nos)
Min.Height of 'T' Beam (mm)	175			175				250			175			250				250			300
F Min - Max	90-180			90-180				125-210			90-180			125-210				125-210			**
A headroom	1170			1370				1480			1110			1345				1460			1825
D Min-Max	151-196			151-196				163-178			151-196			163-178				163-178			452-487
E * Min-Max	399-444			399-444				412-457			399-444			412-457				412-457			452-487
G	31			37-42				42			37			51				67			89
H	130			143				140			130			120				140			371
I	230			290				330			320			405				480			371
J	270			315				365			305			350				395			625
K				305										305							495
M+				380										380							380

Notes: * When Cross Travel Motor on this side.
^ Higher Travelling Speed of 26m/min. can be offered.
**For 10 T Capacity Trolley is not adjustable at site - Exact Flange Width (Within 140 to 210 mm) to be given.
* Add 125 mm if CT with brake (Brake is at extra cost)
+ Applicable for creep speed model only.
For Monorails stiffened width plates, please check up for operating clearance in trolley.
^^ Check 'I' Beam Mounting Arrangements, Trolley Plates with project 10mm above 'I' beam

Short Headroom Hoist

This Model is suitable in cases where ceiling height is low and highest possible lift is required . Illustration above is with electric trolley. However, Geared Trolley can also be supplied

Capacity	Lift in Metres	A	B		C		D		E		H	J	Length

			Min.	Max.	Min.	Max.	F.W 90-180	F.W 190-280	F.W 90-180	F.W 190-280
1 T	6	251	175	600	90	210	616	631	515	520	600	31	1075
2 T	3	251	175	600	90	210	616	631	577	592	650	37	1075
1 T	12	251	175	600	90	210	616	631	515	520	600	31	1285
2 T	6	251	175	600	90	210	616	631	577	592	650	37	1285
1 T	20	251	175	600	90	210	616	631	515	520	600	31	1555
2 T	10	251	175	600	90	210	616	631	577	592	650	37	1555

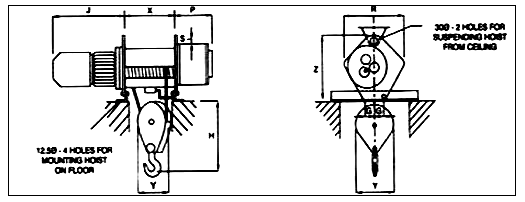

Fixed Mounting Type

Type	Capacity	lift (M)	H (Mm)	X (Mm)	N (Mm)	P (Mm)	S (Mm)	Z (Mm)	Y (Mm)	R (Mm)	G (Mm)
WRH I	1	6/12/20	740	343/543/813	505	215	25	310	255	310	55
	2	3/6/10	675
WRH II	2	6/12/20	855	379/549/819	530	232	46	415	310	400	77.5
	4	3/6/10	755
WRH III	3	6/12/20	870	379/549/819	585	250	44	490	375	490	90
	6	3/6/10	865
	10	4/6	1275	549/819

1) This type of Hoist can be mounted on floor or to the ceiling
2) Illustration above is to give general idea only
3) Supporting / suspending system dimensions to be decided by the customer considering load and supporting span
